LED Module VBX Diamond 1 SLIM 12V

Illuminate your signage with the VBX Diamond 1 SLIM 12 V LED module — a compact, high-performance lighting solution designed for channel letters, light boxes, and other illuminated displays. Part of the Diamond Series, this slim module offers uniform, consistent illumination thanks to its optimized design and quality LED components, ensuring even light distribution without dark spots. Built for reliable performance and easy installation in 12 V systems, it’s a great choice for both indoor and protected outdoor signage applications.

Reference: VBX1436

Description

Areas of application

Signage and illuminated advertising.
Backlighting of channel letters and light box.

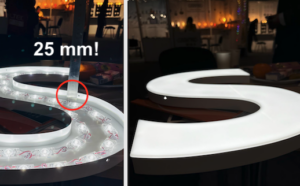

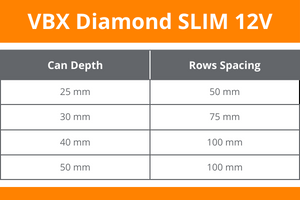

Best for 25mm to 100mm depth (1inch to 2inch).

Product main benefits

Ultra-thin lens and module thin-technology system solution design can achieve 25mm light box and channel letter excellent uniformity requirement.
New technology to get high efficiency.
5 years warranty.
IP66.

Additional information

Full Packaging	50 modules. Price for single module.
Power	0,36 W
Lumen [lm]	61 Lumen/mod
Color CCT	6500K, 4000K
Size	31,5×18,8x H7,4 mm
Pitch	100 mm
Max led module in one line	100 modules
Energy Efficiency Class	D
