LED Strip- VBX Lama Luce GEN2

The VBX Lama Luce wall washer LED strip is the ideal solution for creating wall washer lighting for signage, billboards, and architectural projects. It is sold as a 5m LED light reel. IP67 certified.

LED module for double-sided illuminated signs, double-sided, wallwash effect, wall wash, box, lateral edge strip, edgestrip, double-sided, face. Wall Signs.

Description

Wall washer LED strip with directional optics and IP67 protection. Revolutionize your perimeter signage and discover a new definition of practicality for wall washing projects. The VBX Lama Luce LED Strip is designed to emit a high-intensity beam of light with a beam angle of just 38°. The VBX LED strip for edge lighting is powered by 24V and emits 2000 lumens per meter with just 18W per meter of power. Light quality is guaranteed by a CRI above 90.

The wall washer LED strip can be cut every 2.28 cm and comes complete with steel clips for mounting.

For wall washing applications with a light blade effect and perimeter edge lighting.

  • High light transmittance PC material, uniform luminescence, no macular, no light attenuation within 3m of wall washing height
  •  It can achieve the traditional LED light strip to achieve the wall washing effect, and also be used for home lighting and curved surface lighting
  • UV resistant PVC and PC materials, PC lens and PU glue package, durable and reliable
  •   Diversified installation methods:back glue, aluminum profile, mounting clip

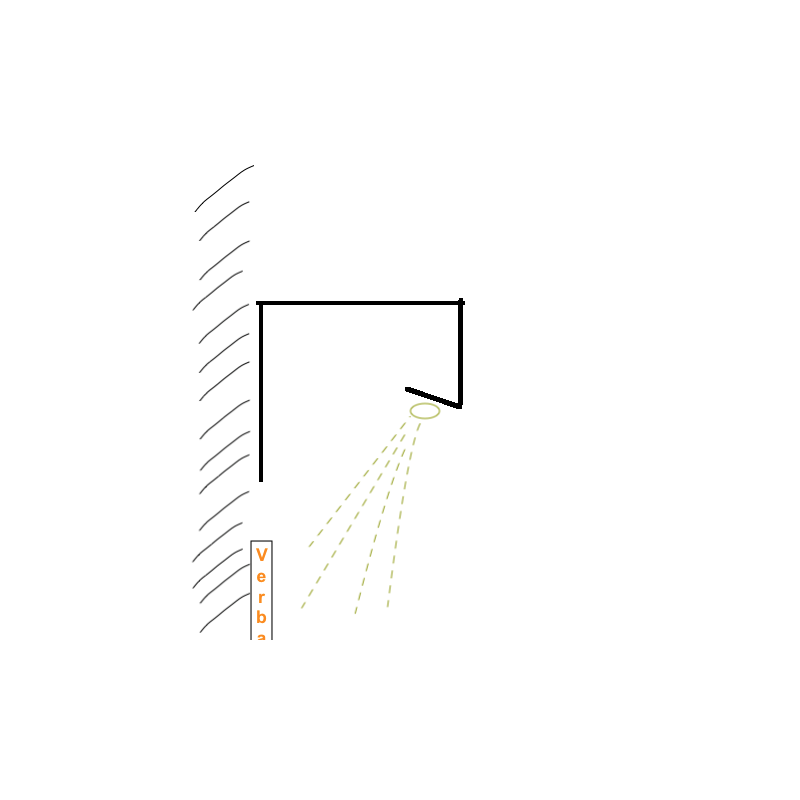

  •   Distance from Wall for 4-10CM,Optimal wall washing height is 1-1.5m
  •   IP grade:IP67.
  •  CE&ROHS certificated, stable, reliable.ABS injection shell, fire proofing.
  •  3 years warranty
  •  Widely used in hotels、shopping malls、furniture、cabinets、shelf,as decoration lighting, direct lighting or indirect lighting

Additional information

Input voltage

24 V

Power

18 W/m

Lumen (lm)

1900 Lm/m (3000K); 2000 lm/m (4000K, 6000K)

Nominal beam angle [°]

30° (50% max intensity)

Package includes

20 metal clips, 1 end cap, 1 open end cap

Energy Efficiency Class

F

Cutting resolution

22,8 mm ( 1 LED)

Pitch

42 Led/m (2,3 cm)

Base

NO ADHESIVE

CRI

90+

Size

5000x20xH11 mm
