Description

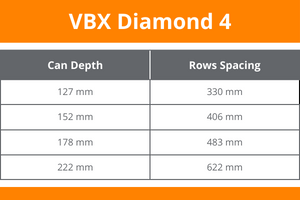

The table refers to the maximum distance applicable between LED module rows in relation to the can depth.
Moduli LED VBX Diamond 4
LED modules at 24V constant current for uniform and efficient lighting even at high thicknesses thanks to the innovative lens design. New technology to achieve high efficiency. High beam angle 175°. IP67 protection rating for outdoor installation. Also suitable for indoors thanks to CRI>80. For illuminated signs, channel letters, light boxes, backlighting; for lighting, advertising, decoration. Equipped with double-sided adhesive and screw hole.
Ideal for depths from 125 mm to 150 mm
Additional information
| Full Packaging | 100 modules. Price for single module. |
|---|---|
| Input voltage | 24V |
| Power | 1,44 W |
| Lumen [lm] | 220 Lumen |
| Nominal beam angle [°] | 175° |
| Size | 44x38xH11 mm |
| IP | 67 |
| Pitch | 260 mm |
| Energy Efficiency Class | D |
