VBX 333 LED Modules

The VBX 333 series represents the best value for money for those looking for a versatile and durable LED module for signs. This 12v LED module is equipped with Hyundai LED chipset and is equipped with lenses for each light emitter that create an extremely diffused (170°) beam. VBX 333 LED modules are available in a wide range of colors and in the CRI 90+ version. They are perfect for making illuminated signs or lighting environments and thanks to the IP67 degree of protection they are the ideal solution for outdoor projects or in wet areas.

Reference: VBX 333

Description

INTRODUCTION

HYUNDAI LED H-LED 333 is a LED illumination system for front-lit, back-lit channel letters and also indoor & outdoor decorations. H-LED 333 has 160° wide beam angle and uniformed lighting distribution so that it can be applied to the smaller depth channel letters and boxes like 40~150mm. White(6500K), Red, Green, Blue color are available. H-LED 333 provides many advantages like the brilliant light output, energy cost saving and maintenance cost reduction.

FEATURES

• High Efficiency(115 lm/W)
• Wide Beam Angle 170°
• Long Life time (More than 50,000hrs at L70) • Easy installation and maintenance
• 100% waterproof (IP67)
• Safety due to low working voltage(12VDC)
• 5years warranty
• White(6,500k), Red, Green, Blue 3500 k 3500k

APPLICATIONS

• Sign applications

(smaller depth channel letters and boxes like 40~150mm)

• Indoor & Outdoor lighting decorations

CERTIFICATIONS

• UL(E258512), CE, RoHS

Additional information

Full Packaging	50 modules. Price for single module.
Input voltage	12V
Power	0.36 W- 0,66 W- 1 W
Lumen [lm]	42 Lumen – 76 Lumen- 120 Lumen
Nominal beam angle [°]	170°

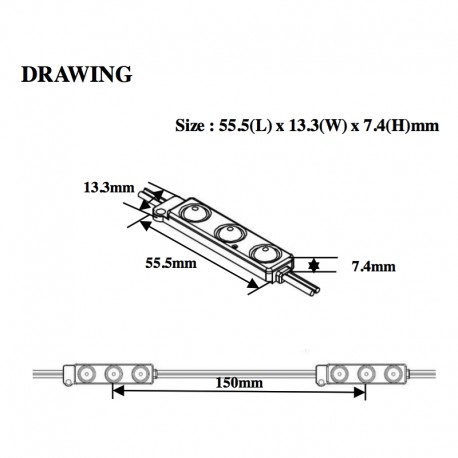

Size	55138 mm
Pitch	0,66W 15cm – 1W 20cm
Energy Efficiency Class	F (White)
