Description
LED Cascade bar VBX shutter
- Smartframe e Lightbox
- Max 40 Bars per Supply Bars
- Max 4 LED Bars in serie
Box thickness (mm): 40, 50, 60, 60+
Bar spacing (mm): 50, 100, 100, 100

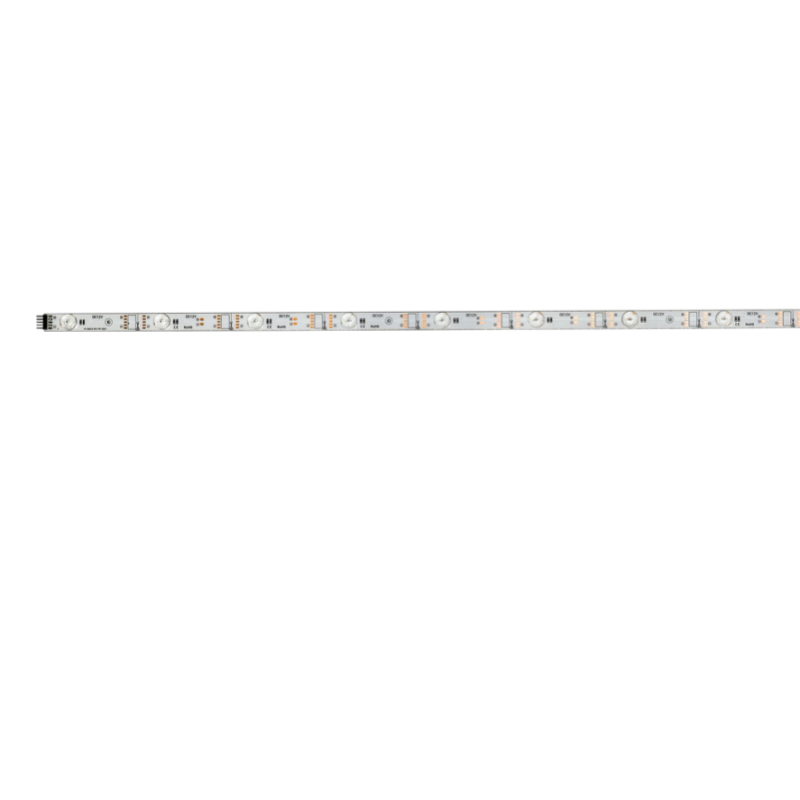

VBX Cascade wireless LED bar
LED bars suitable for indoor use for the backlighting of light boxes, advertising totems, prints on fabric, tensioned sheets, opal plexiglass even with low thickness. Optics with prisms for perfect light diffusion. 170° beam angle to ensure excellent uniformity, even at reduced depths. Aluminum PCB for better thermal dissipation and longer life of the LEDs. Quick and easy wireless installation, with on-board connectors and bar conntectors. Can be cut every 80 m, 1 LED. Supplied with double-side tape and screw holes.
Additional information
| Input voltage | 24 V |
|---|---|
| Power | 5,7 W |
| Lumen (lm) | 680 lm 4000K – 740 lm 6500K |
| Size | 960 mm |
| Cutting resolution | 80 mm led, 25 mm connectors |
| Pitch | 80 mm led, 50 mm connectors |
| Energy Efficiency Class | E |
