Description

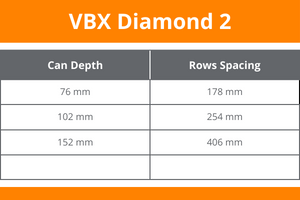

The table refers to the maximum distance applicable between LED module rows in relation to the can depth.
VBX Diamond 2 12V LED Modules
LED modules at 24V for uniform and efficient lighting even at high thicknesses thanks to the innovative lens design. New technology to achieve high efficiency. High beam angle 175°. IP67 protection rating for outdoor installation. Also suitable for indoors thanks to CRI>80. For illuminated signs, channel letters, light boxes, backlighting; for lighting, advertising, decoration. Equipped with double-sided adhesive and screw hole.
Ideal for depths from 50 mm to 100 mm
Additional information
| Full Packaging | 90 modules (30×3). Price for single module. |
|---|---|
| Input voltage | 12V |
| Power | 0,72 W |
| Lumen [lm] | 120/122 |
| Color CCT | 6500K-7000K |
| Nominal beam angle [°] | 175° |
| Size | 50×16 xH11 mm |
| IP | 67 |
| Pitch | 180 mm |
| Warranty | 5 Years |
| LED Chip | Lumileds |
| Energy Efficiency Class | D |
