VBX mini LED Modules

LED modules for illuminated signs and small channel letters. 12V power supply.

The VBX mini LED modules are the ideal solution for projects that require a light source that is compact in size but nonetheless equipped with good light distribution, guaranteed by the prismatic optics. The price refers to the pack of 100 LED modules.

Reference: VBX1258

Description

VBX mini LED modules for signs are single light source LED modules designed for applications with reduced dimensions. Thanks to their size of just 17×9 mm and a thickness of less than a centimeter, they are suitable as LED modules for backlighting small boxes and channel letters.

They are 12V powered, with a consumption of 0.24W per module for the white color. They are IP67 certified, which makes them suitable for permanent outdoor applications and in situations of exposure to rain and humidity.

Additional information

Full Packaging	100 modules. Price for single module.
Input voltage	12V
Power	0,24W white, 0,13W red, green, blue
Lumen [lm]	30 lm white, 6 lm red, 15 lm green, 2.3 lm blue
Nominal beam angle [°]	168*147°
Size	17x9xH9mm
IP	67
Pitch	46 mm

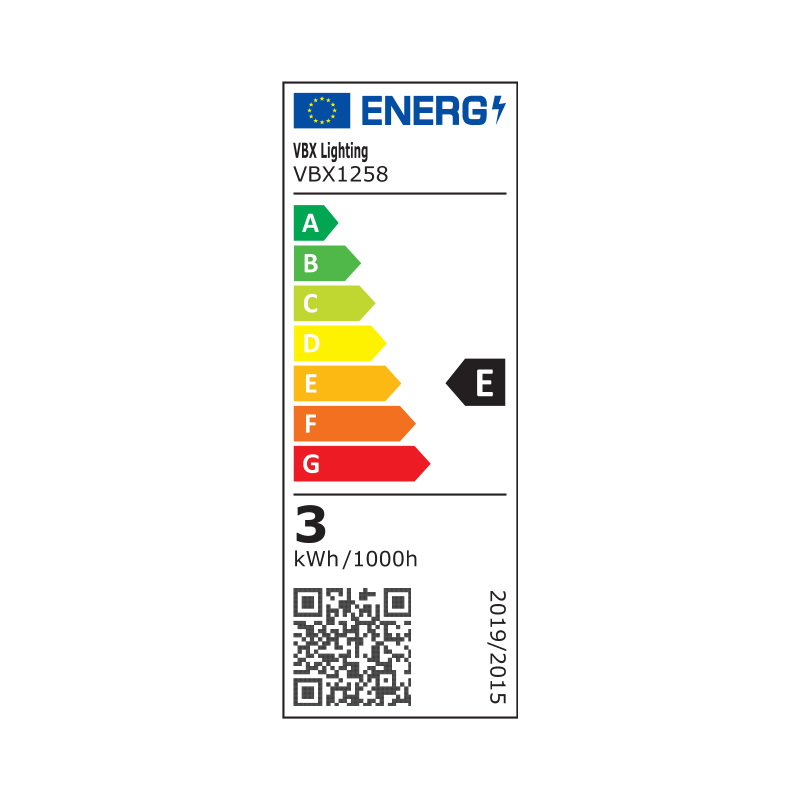

Energy Efficiency Class	E (White)
